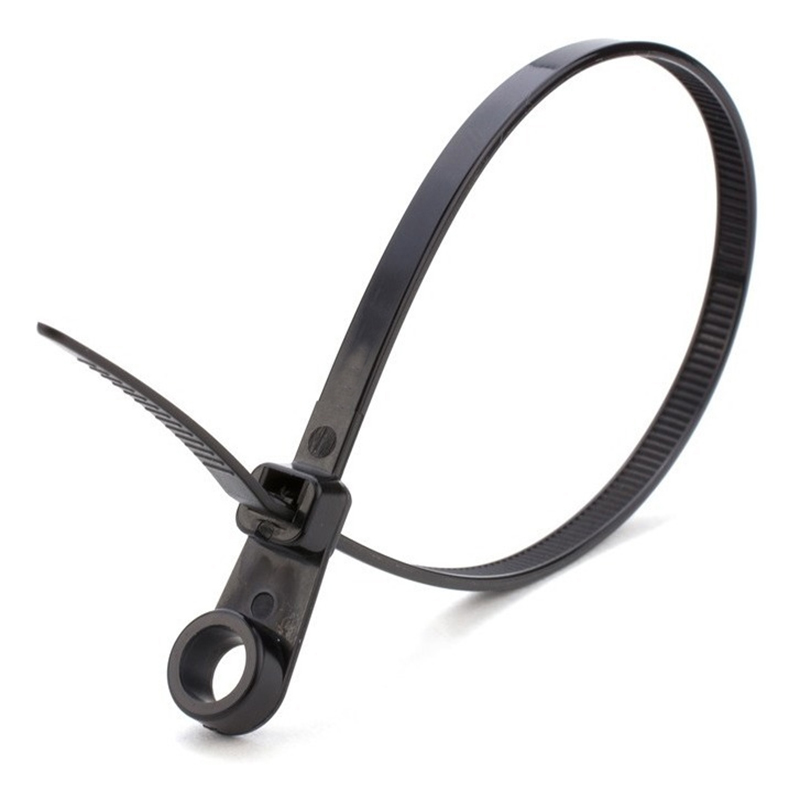

G20_ABO43226_Abraçadeira_Olhal_Preta_800

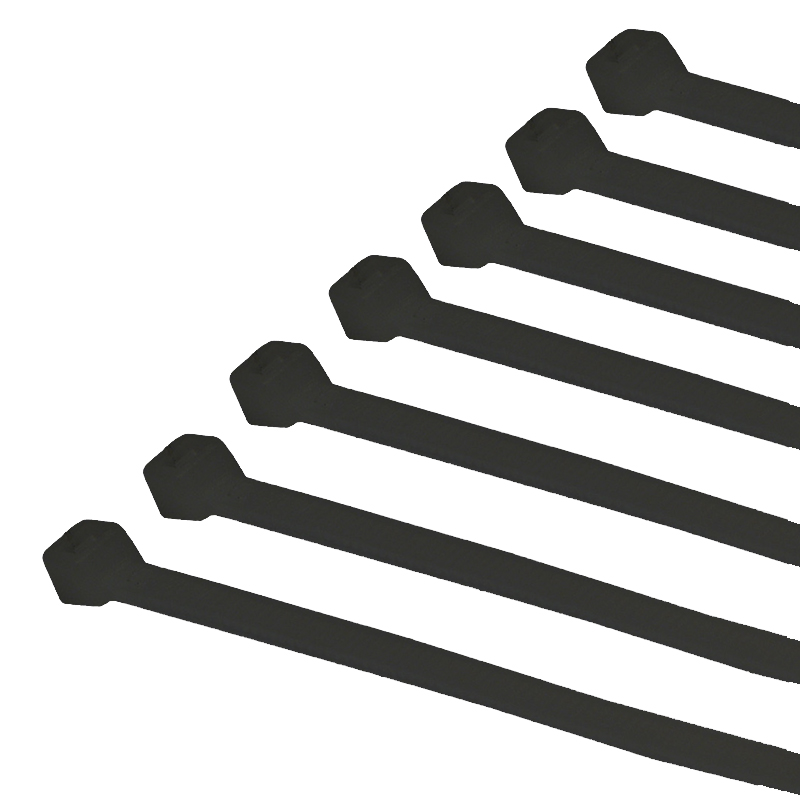

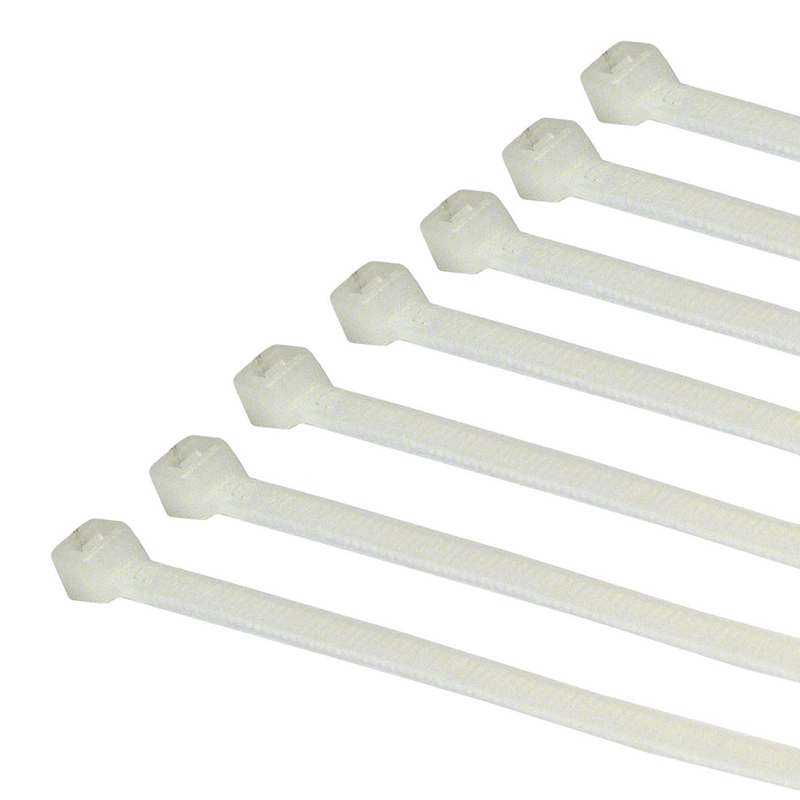

Abraçadeira de Nylon

ABN25101

Descrição

• PA66 de alta resistência
• Antichama
• Temperatura de trabalho: -35 a 85 ºC
• Proteção anti-UV na cor preta
• Auto travante

Adicionar ao orçamento

Vídeo de Apresentação

Arquivos do Produto

Manual de Instruções%size%

Ficha Técnica%size%

Ficha Cadastral%size%

Especificações do Produto

CÓDIGO	DIMENSÕES (L x C)	COR	DIÂMETRO AMARRA (mín - máx)	TENSÃO RUPTURA (Libra/kgf/N)	EMBALAGEM (PACOTE/MID./MASTER)
ABN25101	2,5 x 100 mm	AMARELA	2 - 22 mm	18/8/78	100 un / 10 pcts / 500 pcts
ABN25102	2,5 x 100 mm	AZUL	2 - 22 mm	18/8/78	100 un / 10 pcts / 500 pcts
ABN25103	2,5 x 100 mm	BRANCA	2 - 22 mm	18/8/78	100 un / 10 pcts / 200 pcts
ABN25104	2,5 x 100 mm	CINZA	2 - 22 mm	18/8/78	100 un / 10 pcts / 500 pcts
ABN25106	2,5 x 100 mm	PRETA	2 - 22 mm	18/8/78	100 un / 10 pcts / 200 pcts
ABN25107	2,5 x 100 mm	VERDE	2 - 22 mm	18/8/78	100 un / 10 pcts / 500 pcts
ABN25108	2,5 x 100 mm	VERMELHA	2 - 22 mm	18/8/78	100 un / 10 pcts / 500 pcts
ABN25141	2,5 x 140 mm	AMARELA	2 - 33 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25142	2,5 x 140 mm	AZUL	2 - 33 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25143	2,5 x 140 mm	BRANCA	2 - 33 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25144	2,5 x 140 mm	CINZA	2 - 33 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25146	2,5 x 140 mm	PRETA	2 - 33 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25147	2,5 x 140 mm	VERDE	2 - 33 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25148	2,5 x 140 mm	VERMELHA	2 - 33 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25153	2,5 x 150 mm	BRANCA	2 - 35 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25156	2,5 x 150 mm	PRETA	2 - 35 mm	18/8/78	100 un / 10 pcts / 400 pcts
ABN25201	2,5 x 200 mm	AMARELA	3 - 50 mm	18/8/78	100 un / 10 pcts / 300 pcts
ABN25202	2,5 x 200 mm	AZUL	3 - 50 mm	18/8/78	100 un / 10 pcts / 300 pcts
ABN25203	2,5 x 200 mm	BRANCA	3 - 50 mm	18/8/78	100 un / 10 pcts / 300 pcts
ABN25204	2,5 x 200 mm	CINZA	3 - 50 mm	18/8/78	100 un / 10 pcts / 300 pcts
ABN25206	2,5 x 200 mm	PRETA	3 - 50 mm	18/8/78	100 un / 10 pcts / 300 pcts
ABN25207	2,5 x 200 mm	VERDE	3 - 50 mm	18/8/78	100 un / 10 pcts / 300 pcts
ABN25208	2,5 x 200 mm	VERMELHA	3 - 50 mm	18/8/78	100 un / 10 pcts / 300 pcts
ABN35143	3,5 x 140 mm	BRANCA	3 - 33 mm	40/18/177	100 un / 10 pcts / 250 pcts
ABN35146	3,5 x 140 mm	PRETA	3 - 33 mm	40/18/177	100 un / 10 pcts / 250 pcts
ABN35203	3,5 x 200 mm	BRANCA	3 - 50 mm	40/18/177	100 un / 10 pcts / 200 pcts
ABN35206	3,5 x 200 mm	PRETA	3 - 50 mm	40/18/177	100 un / 10 pcts / 200 pcts
ABN35283	3,5 x 280 mm	BRANCA	3 - 70 mm	40/18/177	100 un / 10 pcts / 130 pcts
ABN35286	3,5 x 280 mm	PRETA	3 - 70 mm	40/18/177	100 un / 10 pcts / 130 pcts
ABN36153	3,6 x 150 mm	BRANCA	2 - 35 mm	40/18/177	100 un / 10 pcts / 250 pcts
ABN36156	3,6 x 150 mm	PRETA	2 - 35 mm	40/18/177	100 un / 10 pcts / 250 pcts
ABN36303	3,6 x 300 mm	BRANCA	3 - 75 mm	40/18/177	100 un / 10 pcts / 100 pcts
ABN36306	3,6 x 300 mm	PRETA	3 - 75 mm	40/18/177	100 un / 10 pcts / 100 pcts
ABN45203	4,5 x 200 mm	BRANCA	3 - 50 mm	50/22/216	100 un / 10 pcts / 150 pcts
ABN45206	4,5 x 200 mm	PRETA	3 - 50 mm	50/22/216	100 un / 10 pcts / 150 pcts
ABN45283	4,5 x 280 mm	BRANCA	3 - 70 mm	50/22/216	100 un / 10 pcts / 100 pcts
ABN45286	4,5 x 280 mm	PRETA	3 - 70 mm	50/22/216	100 un / 10 pcts / 100 pcts
ABN45303	4,5 x 300 mm	BRANCA	3 - 75 mm	50/22/216	50 un / 10 pcts / 200 pcts
ABN45306	4,5 x 300 mm	PRETA	3 - 75 mm	50/22/216	50 un / 10 pcts / 200 pcts
ABN45383	4,5 x 380 mm	BRANCA	3 - 102 mm	50/22/216	50 un / 10 pcts / 160 pcts
ABN45386	4,5 x 380 mm	PRETA	3 - 102 mm	50/22/216	50 un / 10 pcts / 160 pcts
ABN65373	6,5 x 370 mm	BRANCA	4 - 98 mm	115/52/511	50 un / 10 pcts / 90 pcts
ABN65376	6,5 x 370 mm	PRETA	4 - 98 mm	115/52/511	50 un / 10 pcts / 90 pcts
ABN65453	6,5 x 450 mm	BRANCA	4 -130 mm	115/52/511	50 un / 10 pcts / 80 pcts
ABN65456	6,5 x 450 mm	PRETA	4 -130 mm	115/52/511	50 un / 10 pcts / 80 pcts
ABN75553	7,5 x 550 mm	BRANCA	4 -130 mm	115/52/511	50 un / 10 pcts / 60 pcts
ABN75556	7,5 x 550 mm	PRETA	4 -130 mm	115/52/511	50 un / 10 pcts / 60 pcts
ABN90763	9,0 x 760 mm	BRANCA	10 - 225 mm	175/80/785	50 un / - / 30 pcts
ABN90766	9,0 x 760 mm	PRETA	10 - 225 mm	175/80/785	50 un / - / 30 pcts
ABN90926	9,0 x 920 mm	PRETA	10 - 265 mm	175/80/785	50 un / - / 30 pcts
ABN91156	9,0 x 1.150 mm	PRETA	10 - 310 mm	175/80/785	25 un / - / 60 pcts
ABN91356	9,0 x 1.350 mm	PRETA	10 - 380 mm	175/80/785	25 un / - / 30 pcts
ABN93543	12,7 x 540 mm	BRANCA	14 - 155 mm	250/144/1.118	25 un / - / 50 pcts
ABN93546	12,7 x 540 mm	PRETA	14 - 155 mm	250/144/1.118	25 un / - / 50 pcts
