Terminal de Compressão de Cobre Estanhado

TCC11001

Descrição

  • • 1 furo
  • 1 compressão
  • Tensão máxima: 35 kV
Vídeo de Apresentação
Especificações do Produto

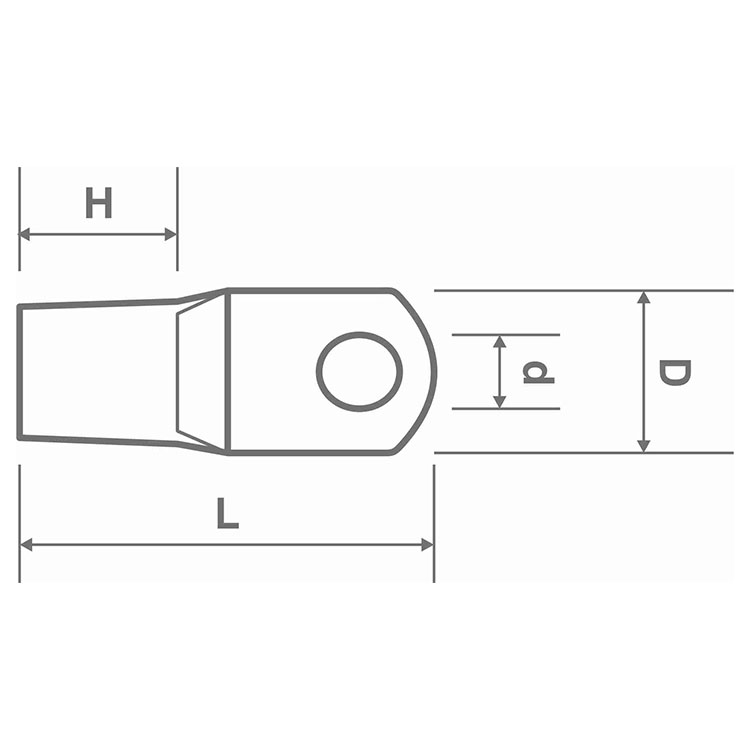

CÓDIGO SEÇÃO DO CONDUTOR DIMENSÕES (L x H x d x D) EMBALAGEM PACOTE EMBALAGEM MID. EMBALAGEM MASTER %c11% %c12%
TCC11001 1,5 mm² 16 mm x 6,5 mm x 5,2 mm x 8,0 mm 100 un 30 pcts. 240 pcts. %c11% %c12%
TCC11004 4,0 mm² 20 mm x 7,5 mm x 5,2 mm x 10,0 mm 100 un 10 pcts. 130 pcts. %c11% %c12%
TCC11006 6,0 mm² 23 mm x 8,0 mm x 5,2 mm x 10,0 mm 100 un 10 pcts. 120 pcts. %c11% %c12%
TCC11010 10,0 mm² 25 mm x 9,0 mm x 6,5 mm x 12,0 mm 100 un 8 pcts. 80 pcts. %c11% %c12%
TCC11016 16,0 mm² 30 mm x 11,0 mm x 6,5 mm x 12,0 mm 50 un 10 pcts. 100 pcts. %c11% %c12%
TCC11025 25,0 mm² 33 mm x 13,5 mm x 6,5 mm x 13,0 mm 50 un 6 pcts. 72 pcts. %c11% %c12%
TCC11035 35,0 mm² 38 mm x 14,5 mm x 8,4 mm x 15,3 mm 50 un 4 pcts. 48 pcts. %c11% %c12%
TCC11050 50,0 mm² 45 mm x 17,0 mm x 10,5 mm x 17,8 mm 50 un 2 pcts. 28 pcts. %c11% %c12%
TCC11070 70,0 mm² 50 mm x 19,5 mm x 10,5 mm x 21,0 mm 50 un 2 pcts. 80 pcts. %c11% %c12%
TCC11095 95,0 mm² 55 mm x 23,5 mm x 10,5 mm x 25,0 mm 10 un 5 pcts. 60 pcts. %c11% %c12%
TCC11120 120,0 mm² 63 mm x 26,0 mm x 13,0 mm x 28,0 mm 10 un 5 pcts. 42 pcts. %c11% %c12%
TCC11150 150,0 mm² 70 mm x 29,0 mm x 17,0 mm x 30,0 mm 10 un 2 pcts. 40 pcts. %c11% %c12%
TCC11185 185,0 mm² 75 mm x 33,0 mm x 17,0 mm x 34,0 mm 10 un 2 pcts. 24 pcts. %c11% %c12%
TCC11240 240,0 mm² 90 mm x 40,0 mm x 21,0 mm x 38,0 mm 10 un - 18 pcts. %c11% %c12%
TCC11300 300,0 mm² 98 mm x 44,0 mm x 21,0 mm x 43,0 mm 10 un - 12 pcts. %c11% %c12%
